UD60 Rear APEX Short Truss

Name: UD60 Rear APEX Short Truss
SKU: TR6062
Rating: 5.00 (1 reviews)

SKU: TR6062

$175.99

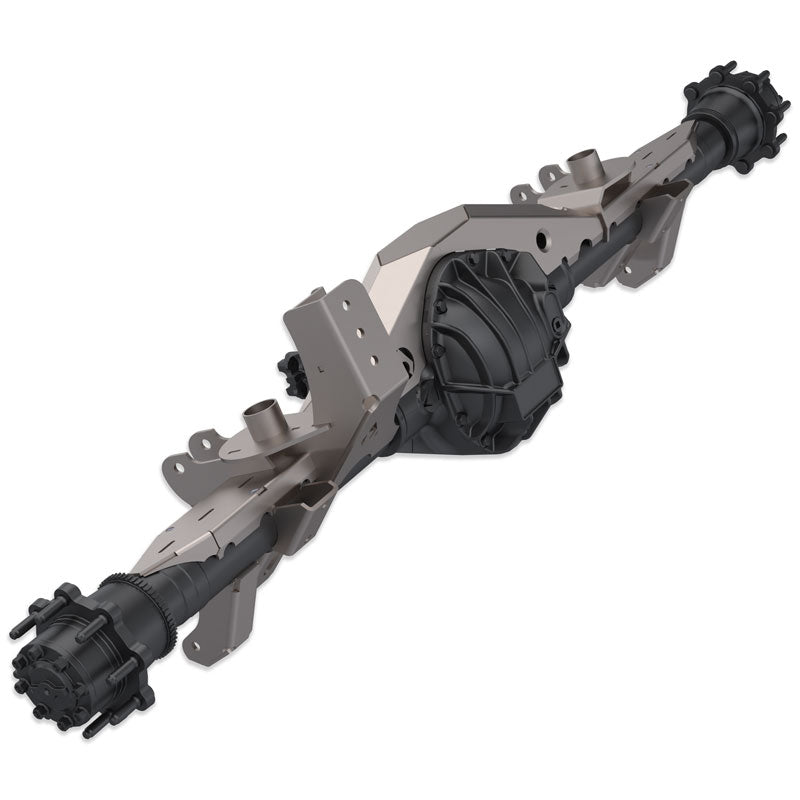

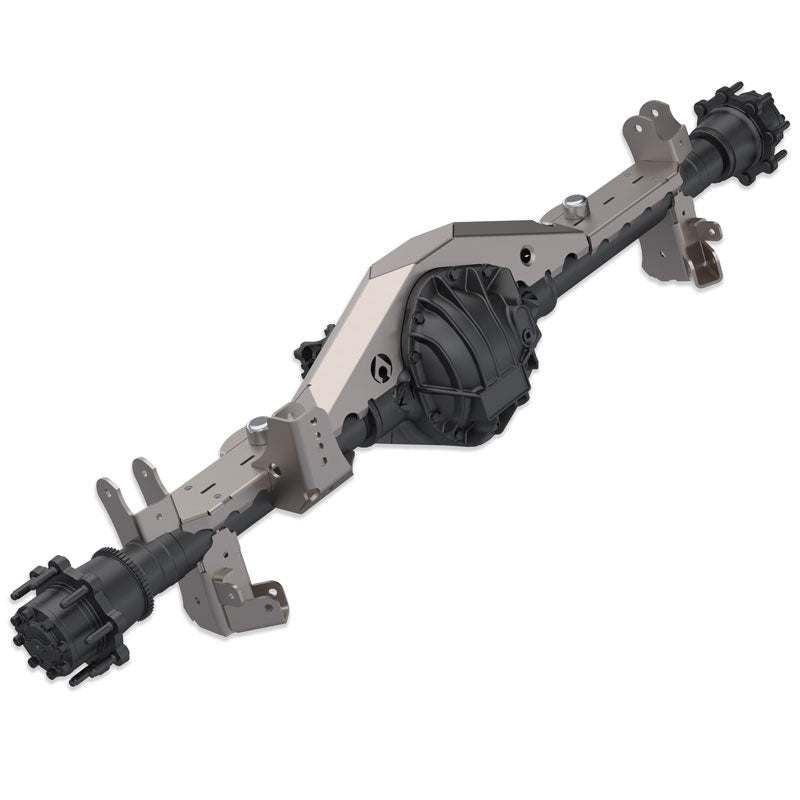

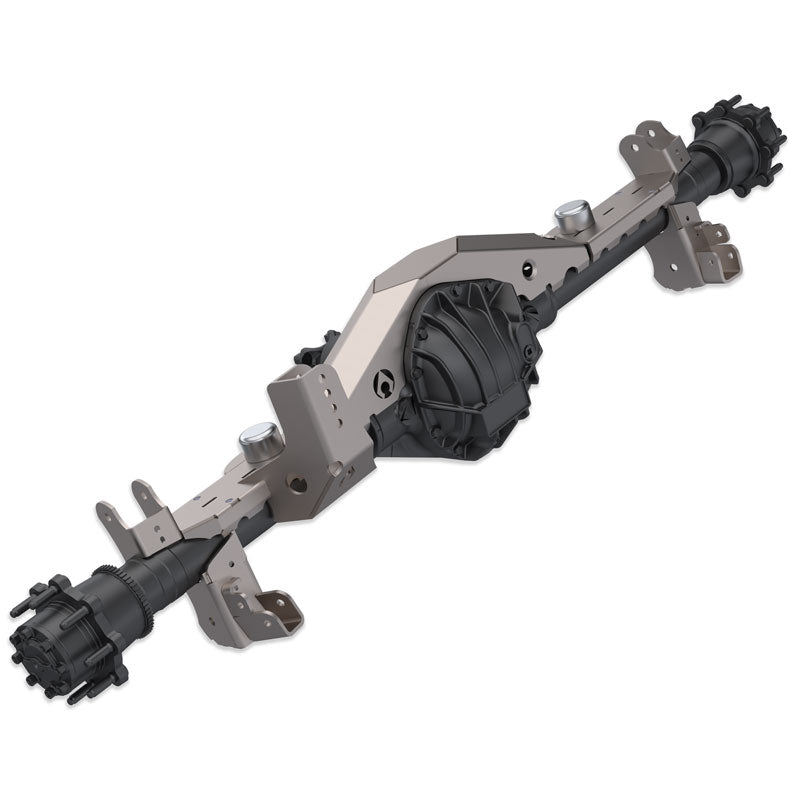

Artec Industries APEX Truss: the next-gen axle truss offering strength, weight savings, easy installation, precision fitment, and complete axle protection. Ideal for APEX 1-ton swap kits for JK, JL, and JT.

Product Details

PATENTED APEX peaked top for rigidity
Lightweight 3/16" mild steel, 13 lbs
CNC precision laser cut/bent for fitment
Designed with Dana/Jeep 3D models
70% less welding, less warping, lower costs
No long seam welding needed
Dimpled holes for weight reduction and strength
Weldable with MIG, moderate pre/post-heating
Low profile for ideal link joint geometry
Fits between coil springs or for link mounts
Two-piece design for easy installation, lower shipping
Sleek, low profile for versatile, strong axle
Made in the USA

Introducing the APEX Truss, Artec Industries' next-gen, PATENTED axle trusses that elevate strength, weight savings, installation simplicity, precision fitment, and complete axle protection. As the world leader in axle truss design, we've crafted the APEX Truss with a unique peaked shape top for enhanced rigidity, weight reduction, and elimination of long weld seams. This design prevents weld warping, reduces install time, and ensures consistency. The APEX Truss serves as the core of our APEX 1-ton swap kits for JK, JL, and JT, improving axle rigidity, strength, and enabling upper link mounting over the differential. Fits Ultimate Dana 60 rear axles, may fit others with minor trimming.

Install Instructions

ArtecIndustries ◢

["custom"]

ArtecIndustries ◢

Install videos are coming soon.

Reviews

5.00

1 review

Sort:

Chris Goodenow

Awesome truss

This truss worked great for the UD60. It fit absolutely perfect and didnt have to do any grinding to make it fit at all. Used it with the 1 stretch coil mounts and couldnt be happier with the results. Thanks

4 years ago

Anonymous

Will this fit on a dynatrac pro 60 for jk? Need it for a 3 link mount.

A — Staff (Artec Team): We do not offer any truss's for any Dynatrac axles this was designed off a 3d scan from a Dana Ultimate 60 rear axle

Nov 27, 2020

Anonymous

Could I use one of your three link brackets on top of this truss to mount an upper link on my UD60? Which one would you recommend?

A — Staff (Artec Team): you can use the JK4430 rear upper link bracket , or any of our current single brackets on the rear they may overhang a little on the rear of the truss but we will be making a Apex truss specific bracket in the future .

Apr 3, 2020
