N
Newly Landrum
Owner/Operator
As always Artec nails this product. Easy to understand directions and fit the Jeep like it should. Thanks for a great product.
7 years ago
Product Details
- In-house CNC laser cut from ¼" and 3/16” mild steel
- Lightweight and robust
- Hassle-free installation: Reinforced truss – simply drop it in place and start welding

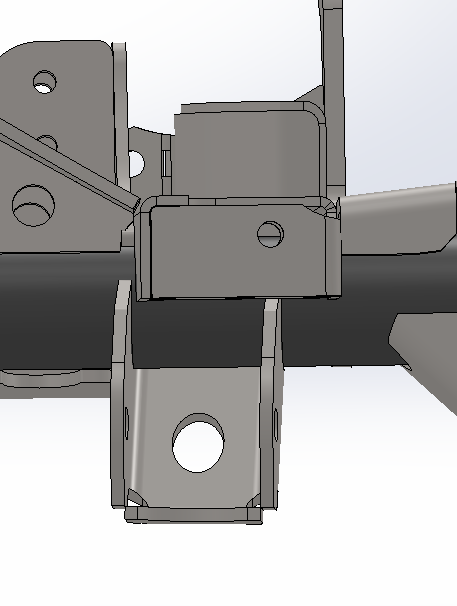

- 3D models from Dana Corp and vehicle OEM for perfect fit and clearance.
- 70% less welding needed than previous designs for less warping, faster turnaround, lower costs
- Dimpled holes provide light weight and rigidity
- Contours to both the cast steel differential
- Upper Control Arms mount to high-clearance differential bridge; fits bushing or Johnny Joint.
- The truss provides complete end-to-end rigidity by extending under coil buckets to inner C
- Coil bracket and bump stop pads are an extension of the Axle truss
- The main truss provides fixture points for all suspension brackets for easy installation
- Improved shock bracket position compared to OEM locations.
Install Instructions
ArtecIndustries ◢
["Install guides for TJ4416","https://cdn.shopify.com/s/files/1/0549/2060/9998/files/TJ4416_instructions_009be4f6-8afa-4ac2-aae4-4eec581fe6c4.pdf?v=1719842995"]
ArtecIndustries ◢
Install videos are coming soon.
Reviews
Sort:
D
Dave Morganthall
Manager
We recently used this kit to install a set of G2 Axle & Gear take out axles into an LS powered 2004 TJ Wrangler. The fitment was good requiring minimal trimming at the center section to keep the control arm bracket spacing the same as it is on factory D44 axles. We would recommend this swap kit and will use it again in the future. Great product
8 years ago
R
Robert Thomas
JK2 TJ truss kit
The kit is awesome. Thick beefy brackets. My only complaint is the instructions are for a 88 rear axle. I emailed no reply called and tech said the instructions arnt ready yet. That was over several weeks ago. 11517 no instructions yet -(
9 years ago
No questions yet. Be the first to ask.
