Product Details
  • 1/4" and 10 gauge (.130") mild steel. Precision CNC cut and bent.
  • Low profile design allows clearance above the axle.
  • Truss spans length of long side AND short side for complete reinforcement.
  • Interlocked 10 gauge thick gussets for maximum strength and easy assembly.
  • Sleek design for easy installation and less interference with vehicle components.

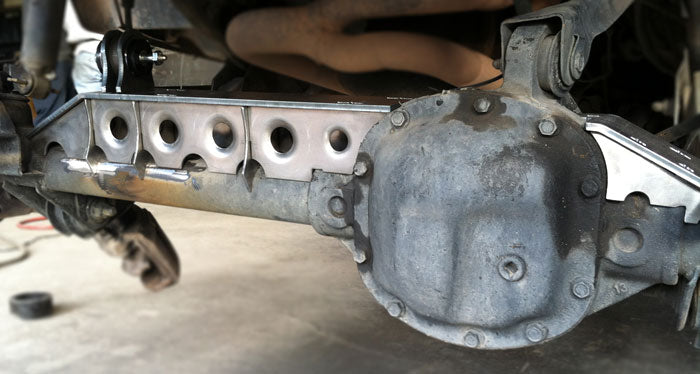

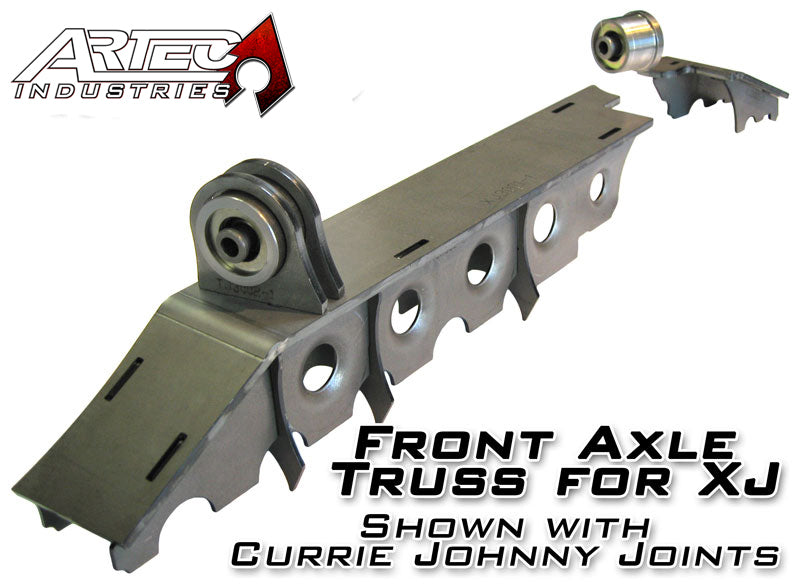

Front Axle Truss for XJ

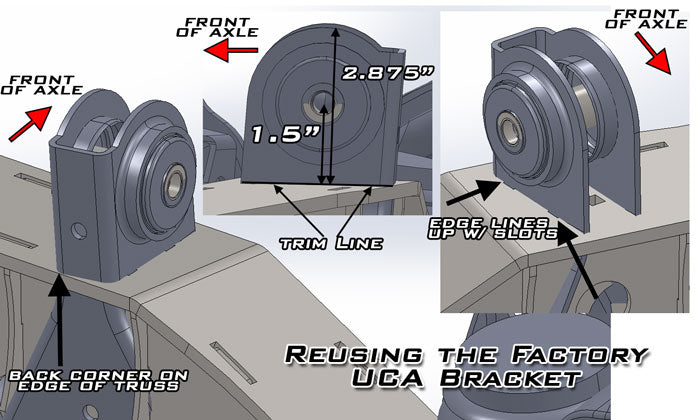

The Artec Industries XJ High Pinion 30 Truss is a heavy duty and light weight truss system designed to reinforce your front axle against serious abuse. The 1/4" thick truss top and 10 ga. gusseting strengthen both axle tubes, not just the long tube. Hassle-free installation guaranteed with precision cut and formed components. Upper Control Arm Options: Truss ONLY - No bushings/joints/keyed tabs included. Key hole slots on top of truss where keyed tabs would go must be filled with weld. Use this only if you aren't connecting the passenger side UCA or are reusing the factory bracket (see 4th image for details). Daystar Bushings - Includes bushing, inner sleeve, and thrust washer for Driver side and bushing, weldable outer sleeve, inner sleeve, and two keyed tabs for Passenger side. RockJock Johnny Joints - Includes 2.0" Press-in machined Johnny Joint (CE-9112M), 2.0" weldable Johnny Joint (CE-9112), and two keyed tabs for Passenger side. Both joints include greasable bolts.
Install Instructions
ArtecIndustries

["Install guides are coming soon."]

ArtecIndustries

Install videos are coming soon.

Reviews
5.00
20 reviews
Sort:
B
Bruce Clow

Solid product

I have not yet used it purchased for a long term project but quality is there for sure very sturdy and did mock up on axle and fits well think it will add plenty of strenghth

5 years ago
A
Austin Twede

Great product

Fits perfect. Instructions were clear

6 years ago
R
Ryan

99 Jeep XJ HP Dana 30

Installed the truss C gussets and track at mount. I now have no worrys of bending the axle or Cs. Fit perfectly and is very strong. Great product and fast shipping.

6 years ago
J
Joe Sears

Beef

This truss is pure beef 100% grade A Prime fit-up is really good and I had no issues getting it lined up and welded on

6 years ago
C
Charles Frietsch

Great product

Extremely well engineered product and lay out. Easy to understand instructions with clear pictures. Went together perfectly. Wish I was a better welder but still worked Awsome. Highly recommend this product. Makes a perfect welding project.

6 years ago
E
Edwin

Dana 30 truss

Awesome truss easy to install. Looks great

8 years ago
w
warren shin

axle truss dana 30

got the optioned out truss currie bushings etc. fit up is excellent. very good instructions included. all the pieces fit together perfect. looks awesome.

9 years ago
S
Sam Usary

I am very pleased with the Dana 30 axle truss. Best quality for the lowest price. I shopped around for months reading reviews on companies trusses. I would suggest Artec trusses and products to anyone who is serious about building their rig.

9 years ago
J
Jim D

Great fitting item. You can go wrong with this Artec truss. This truss turns these Dana 30 axles into a very strong item

9 years ago
S
SAM KREIENHEDER

IH PARTS REP

easy to install and looks good just bought the gussets for the cs looking forward to see just how much abuse it can handle

9 years ago
Q
Anonymous

Will this fit a High Pinion Dana 30 with vacuum disconnect

Apr 1, 2025
