Ford 9 inch Rear Top Truss 3.5 in tube

Name: Ford 9 inch Rear Top Truss 3.5 in tube
SKU: TR0902
Rating: 5.00 (2 reviews)

SKU: TR0902

$229.99

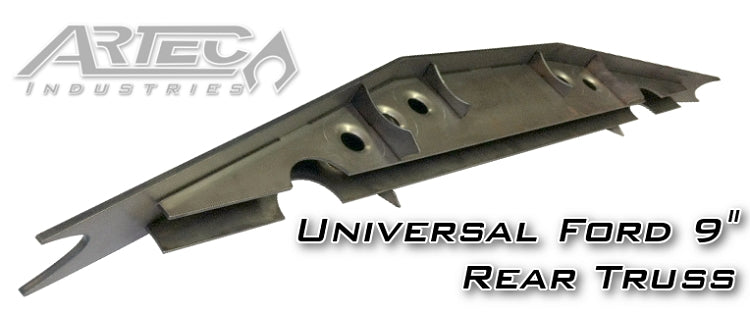

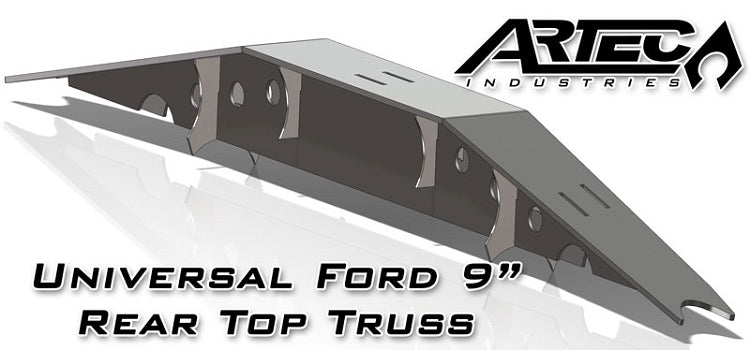

Artec's Ford 9" Rear Axle Truss reinforces and flattens the upper link mounting surface while spanning the entire axle length. The 1/4" truss top and 10-gauge gussets provide superior strength and easy assembly. The low profile design improves axle strength and reduces interference with vehicle components.

Product Details

1/4" thick truss top and 10 gauge gussets for great fitment and strength
Large gussets dimple die for weight savings and increased strength
Low profile design allows ideal link joint geometry about 8 inches from the axle centerline
Spans entire length of axle for complete reinforcement of the axle tubes, not just for mounting links
Reinforced using interlocked 10 gauge gussets for easy assembly and maximum strength
Sleek design makes axle stronger and easier to fit into any vehicle while reducing interference with other components

Artec Industries introduces the NEW Ford 9 inch Rear Axle Truss, designed to reinforce your entire axle and provide a flat surface for upper link mounting. The heavy-duty truss system is built to withstand serious abuse, thanks to the 1/4" thick truss top and 10 gauge thick gussets. The universal design fits nearly any housing and can be easily trimmed to shape for both fabricated and stamped axle housings. To prevent warping, welding should be done carefully with sufficient cooling time between welds. Upgrade your Ford 9 inch rear axle with Artec's high-quality truss system for enhanced strength and performance.

Install Instructions

ArtecIndustries ◢

["custom"]

ArtecIndustries ◢

Install videos are coming soon.

Reviews

5.00

2 reviews

Sort:

Marc DiLorenzo

Nice quality

The quality and fit was perfect. It took some time getting the part cut out for the third member but with some time and a plasma cuter it came out great.

7 years ago

Matt

owner/technician

Looks great & very strong. Takes a bit to get the plates cut out just right but well worth it.

7 years ago

Anonymous

How wide (end to end) are the ford 9" truss's (Front and Rear)?

Jun 4, 2022
