Product Details

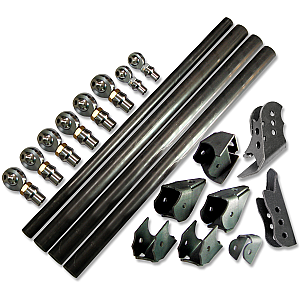

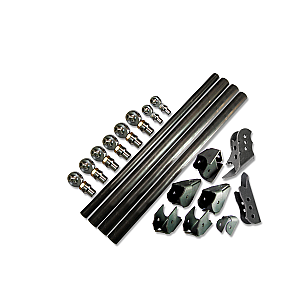

Our EASY 3-LINK KIT F is the simplest way to get your links done. This kit is based off our most popular parts we've sold our customers for a 3-link with panhard bar. This kit is intended for use with our 60 trusses. If you aren't using a truss, please select KIT G. The heat and cryogenically treated chromoly rod ends are the strongest and longest lasting on the market. The included tube adapters feature machined WRENCH FLATS for easy adjustments and tightening and conform to the outer diameter of the tubing it welds to. The included stainless steel high misalignment spacers allow for maximum articulation in the rod end. As an option, this kit offers four foot lengths of both 1.5" and 2.0" tubing to be cut to the exact length needed for your particular vehicle. Includes: 1 RH, 1 LH - 7/8" -14tpi x 3/4" bore rod ends for panhard 1 RH, 1 LH - 7/8" -14tpi Tube Adapters for panhard 1 RH, 1 LH - 7/8" -14tpi Jam nuts for panhard 4 - 3/4"-9/16" High Misalignment Spacers 3 RH, 3 LH - 1.25" -12tpi x 1.0" bore rod ends 3 RH, 3 LH - 1.25" -12tpi Tube Adapters 3 RH, 3 LH - 1.25" -12tpi Jam nuts 12 - 1.0"-3/4" High Misalignment Spacers 2 - Lower Link Frame Brackets 1 - Pair Lower Link Axle Brackets (10 deg) 1 - SINGLE Truss Upper Link Mount (2.63") 1 - Inner Frame Bracket (0 deg) - CHOOSE DRIVER OR PASSENGER 1 - Adjustable Panhard Frame Mount - CHOOSE ORIENTATION 1 - Adjustable Panhard Truss Mount - CHOOSE TRUSS 1 - 4 ft 1.5" OD .250" thick DOM tubing (optional) 3 - 4 ft 2.0" OD .250" thick DOM tubing (optional) NOTE: This kit will require drilling of lower link holes to 3/4" unless you specify you'd like 9/16" bolts for your lower links.

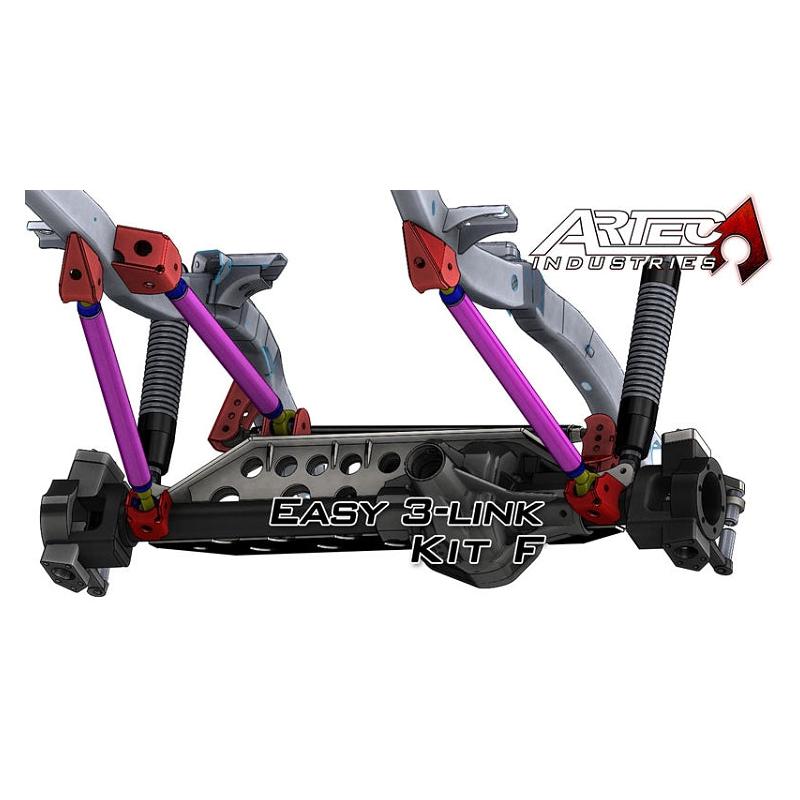

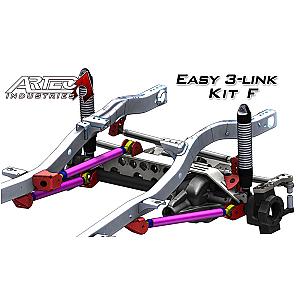

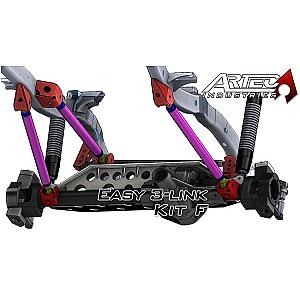

Easy 3 Link - Kit F - for Artec Trusses
Artec Industries' EASY 3-LINK KIT F offers the simplest solution for a 3-link with panhard bar. Heat and cryogenically treated chromoly rod ends, tube adapters with wrench flats for easy adjustments, and stainless steel high misalignment spacers provide maximum articulation. The kit is based on our most popular parts and intended for use with our 60 trusses. Optional four-foot lengths of 1.5" and 2.0" tubing ensure a perfect fit for your vehicle.
Install Instructions
ArtecIndustries

["custom"]

ArtecIndustries

Install videos are coming soon.

Reviews
4.00
1 review
Sort:
B
Brandon

Driver side upper link mount is upside down?

I purchased the 3 link brackets and truss shown for kit F and bought my hiems and weld in bungs elsewhere for my 84 blazer. I got around to installing said brackets and hiems recently. All of the brackets from Artec were of exceptional quality. The only thing I had an issue with was the driver side upper link mount. I feel like the design is upside down if installed as shown in the pictures featured it does not allow full droop of the suspension travel. Had to angle the face of the bracket downwards at 15 degrees to achieve a clean suspension droop. In my opinion is just looks funky having the bracket angled down like that. Not sure if that was the intention or not. I am still satisfied with my purchase and the product I received from artec and definitely would buy from them again.

10 years ago

No questions yet. Be the first to ask.
